Price range: €136.98 through €168.98

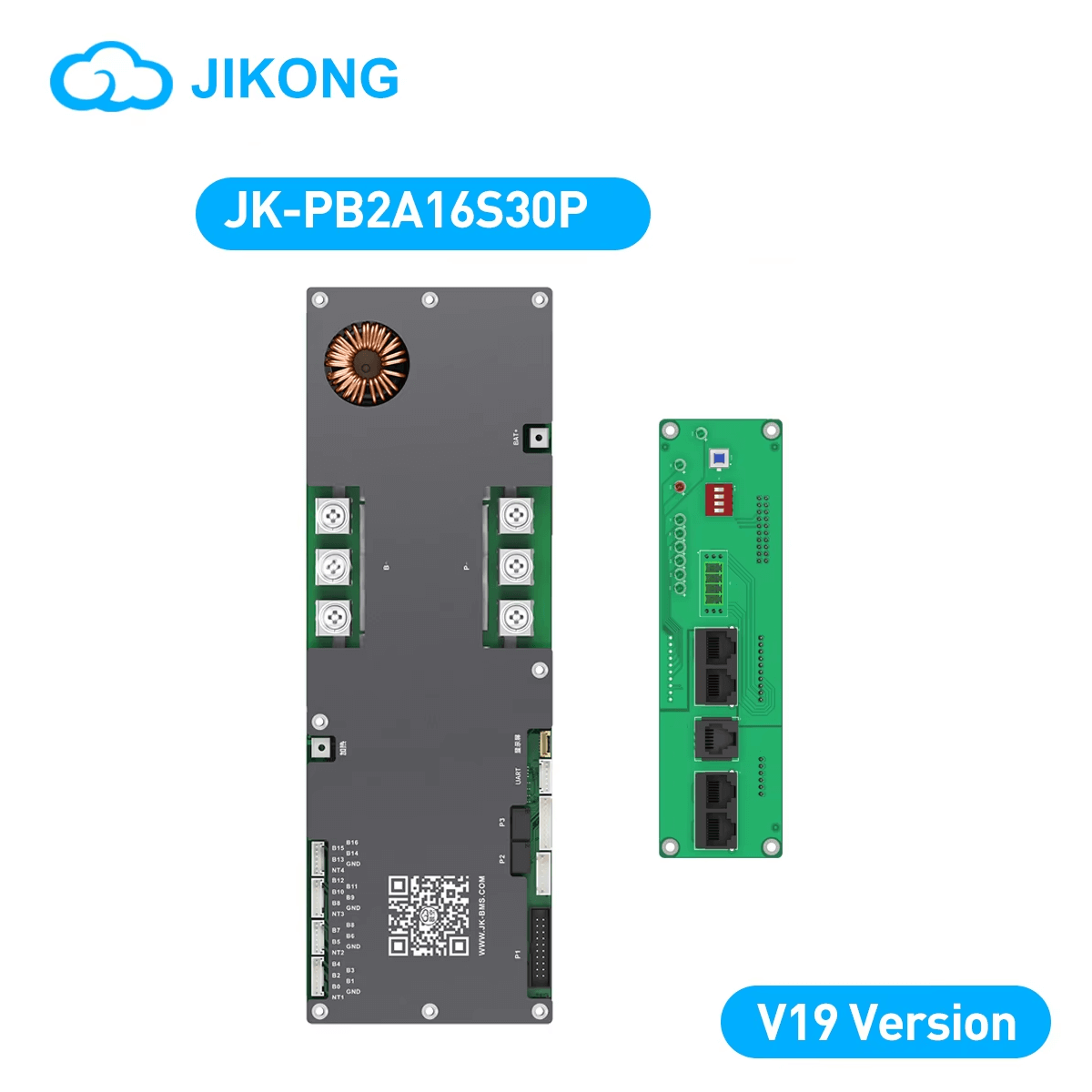

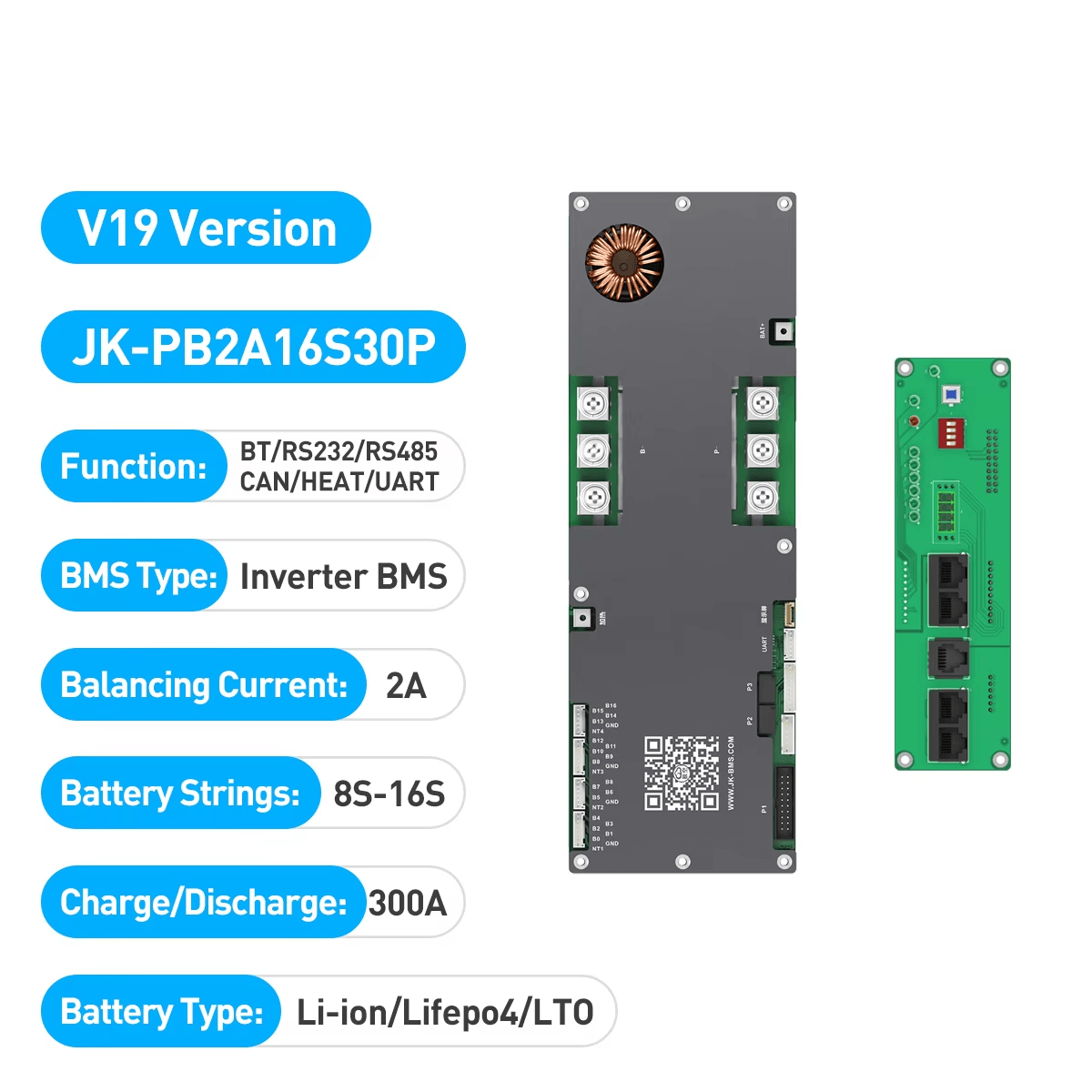

JKBMS PB2A16S30P V19 7S-16S Active Balance Inverter BMS Balance Current 2A Continuous Current 300A Family Energy Storage Lifepo4/Li-ion/LTO for Growatt Deye Etc Inverter BMS

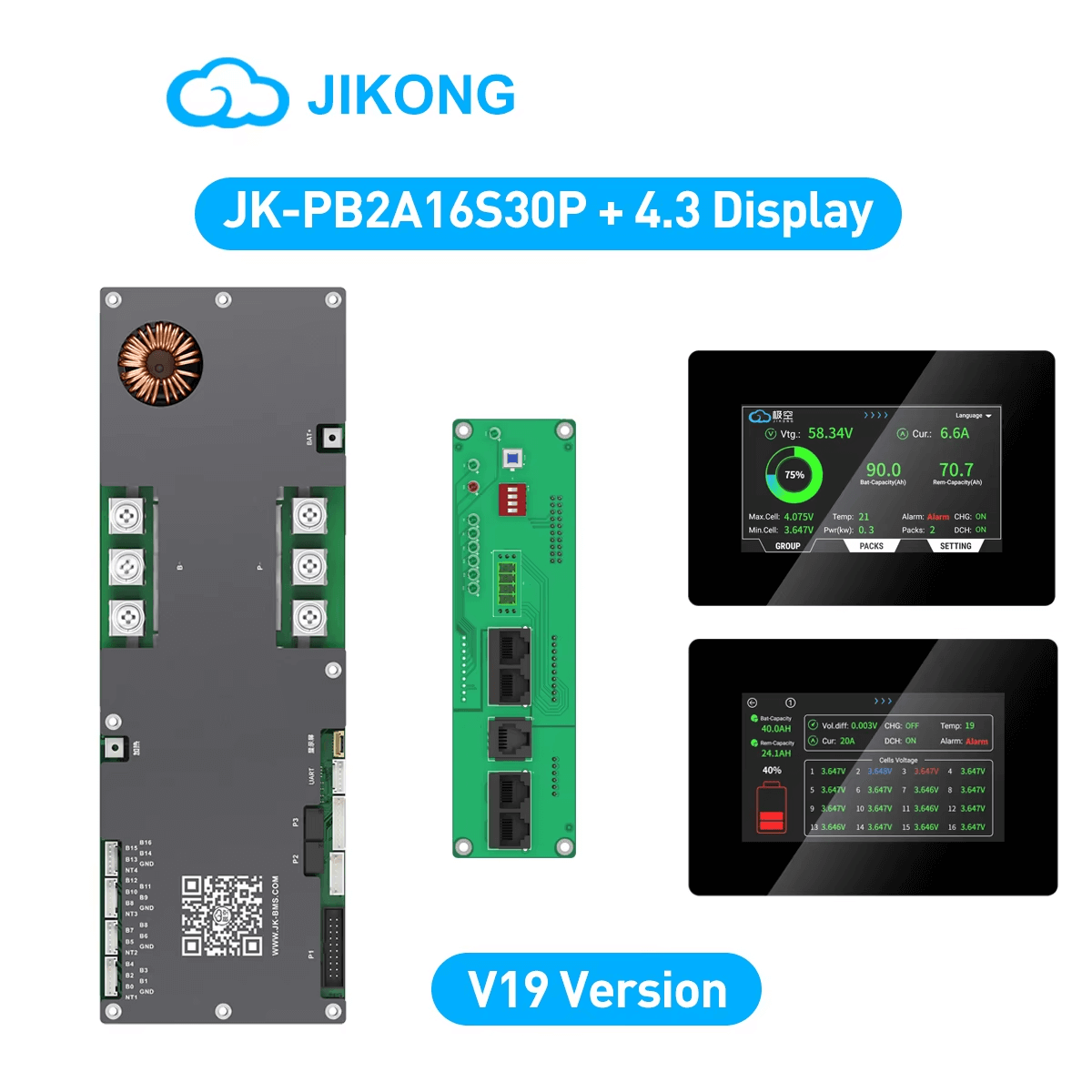

Note: LCD is optional(Exclude LCD),Please buy LCD at the following link,Click Here!
● Number of Battery Strings:7S to 16S.
● Continuous Current:300A.
● Power supply mode:The battery pack is self-powered.
●Single cell voltage detection range:0-5V,error<10mV over full operating range,Typical error value<5mV.
● Support single cell voltage dropout detection.
● Balance current:2000mA,Active Balance(Full State On).
● Wiring method:same port.
● Short Circuit Protection:Support.
● Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone.
● Temperature detection:-40～125℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
●Current Sense Shunt:-150A~300A,Error<0.5%FSR.
●SoC estimation accuracy:Error<8%(operating conditions).
● Battery remaining capacity:error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
●Operating power consumption:<5mA(without communication)/15mA(485/CAN).
● Standby power consumption:<2mA.
●Operating Temperature:-40~85°C.
● Storing Temperature:-40～95℃.
